R-IF
R-IF | Raisefront
● Easy Maintenance
● Wide viewing angle
● Environment friendly
● Seamless Assembly
● Long using-life
Product advantages:
* Easy Maintenance :
designed with easy assembly and installation
* Wide viewing angle :
Patented design module mask with 120°/ 120° viewing perfect angle and good flatness.
* Environment friendly:
20% power saving to protect environment and saving your cost
* Seamless Assembly:
Processed by electric-mechanical machining with the accuracy to 0.1mm.
* Long using-life:
Raise choose high quality components patent circuit board design for display to ensure the using-life.
Convenient:
1.Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and display mode as VGA+VIDE and VGA.
2.Display all kinds of word, text, graph, picture, video, 2-dimensional, 3- dimensional animation and TV and VCD other information with your PC does synchronously.
3.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
Applications:

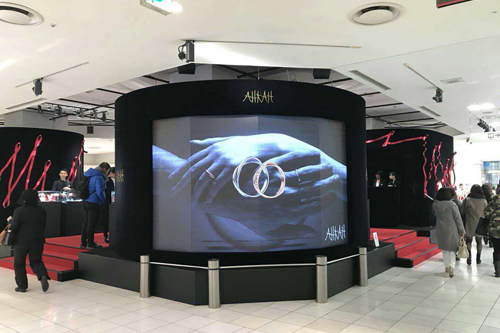

Applied in Entertainment complexes, Hotel conference room, Restaurants, Showrooms, Casinos, Government facilities, Theaters, Retail outlets, Traffic control room, Security monitoring room,
Stage background, HD cinema, Shopping malls, Railway stations, Airports and other indoor advertising places.
Technical Parameters
R-IF
|
|
3 |
4 |
6 |
|
Pixel Pitch（mm） |
3 |
4 |
6 |
|
LED Type |
SMD2121 |
SMD2121 |
SMD2121 |
|
Cabinet Resolution（Px*px） |
192*192 |
144*144 |
96*96 |
|
Module Size(mm) |
192*192 |
192*192 |
192*192 |
|
Cabinet Dimension（mm) |
576*576 |
576*576 |
576*576 |
|
Horizontal Viewing Angle (Deg) |
140 |
140 |
140 |
|
Vertical Viewing Angle (Deg) |
Up 20/Down 60 |
Up 20/Down 60 |
Up 20/Down 60 |
|
Cabinet Weight（kg） |
28 |
28 |
28 |
|
Brightness(cd/m²) |
4000 |
4000 |
4000 |
|
Gray Scale（Bit） |
14-16 |
14-16 |
14-16 |
|
Refresh Rate（hz） |
≥1920 |
≥1920 |
≥1920 |
|
Max/Avg Power Consumption(W) |
900/360 |
900/360 |
900/360 |
|
Input Voltage(V) |
110V-220V |
110V-220V |
110V-220V |
|
IP Rating |
IP43 |
IP43 |
IP43 |
|
Panel Material |
Aluminum/Iron |
Aluminum/Iron |
Aluminum/Iron |
|
Installation Type |
Indoor Fixed |
Indoor Fixed |
Indoor Fixed |
