R-A Series
Product advantages:
R-A | Raisefront

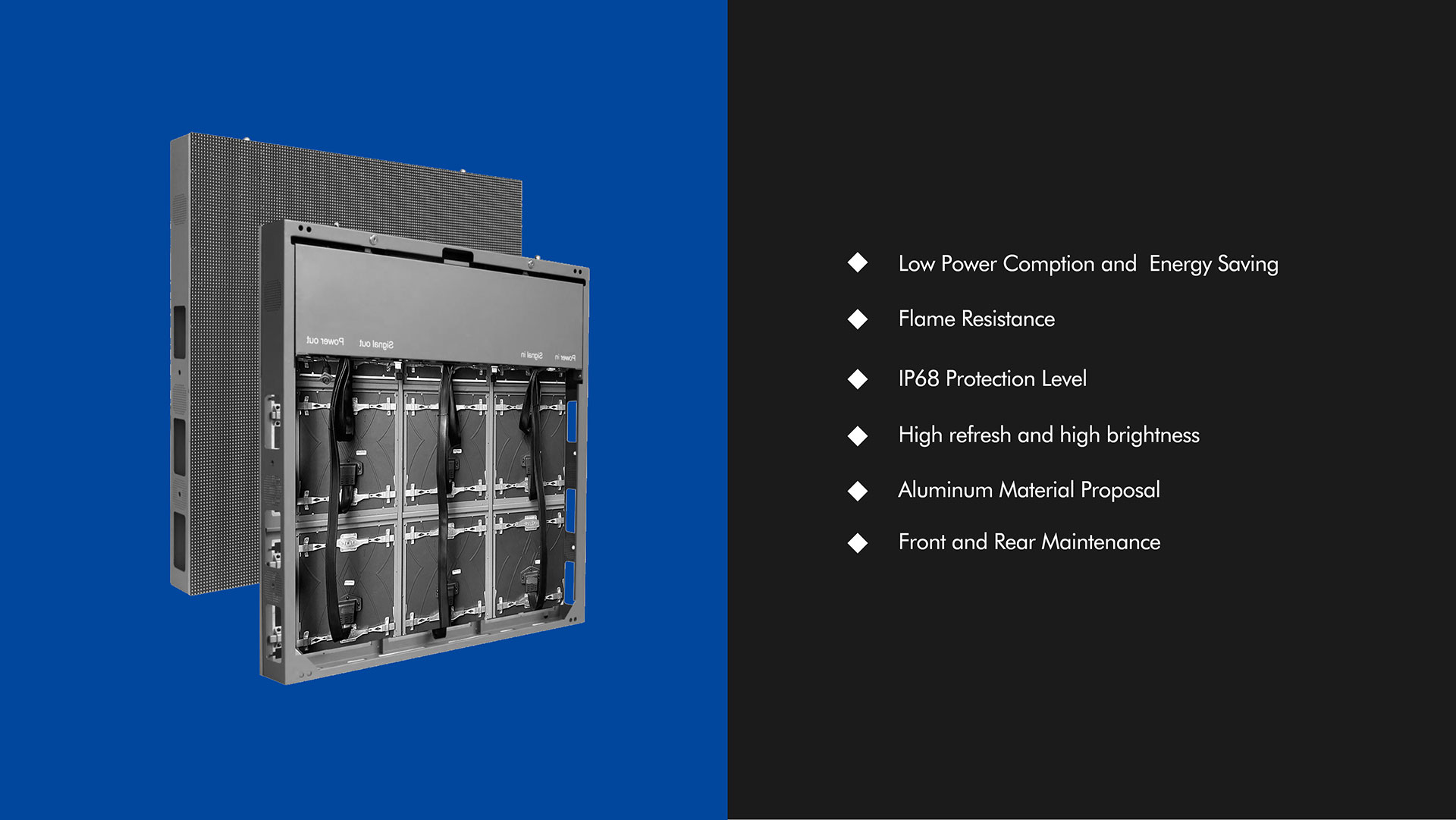

Raisefront R-A outdoor fixed installation, Aluminum cabinet and modules, Common cathode power saving, front and back service， totally highlight and high refresh design, could use for 3D design big video wall. High level waterproof level meet high level outdoor project.
● R-A product all use aluminum
● Light weight of the cabinet

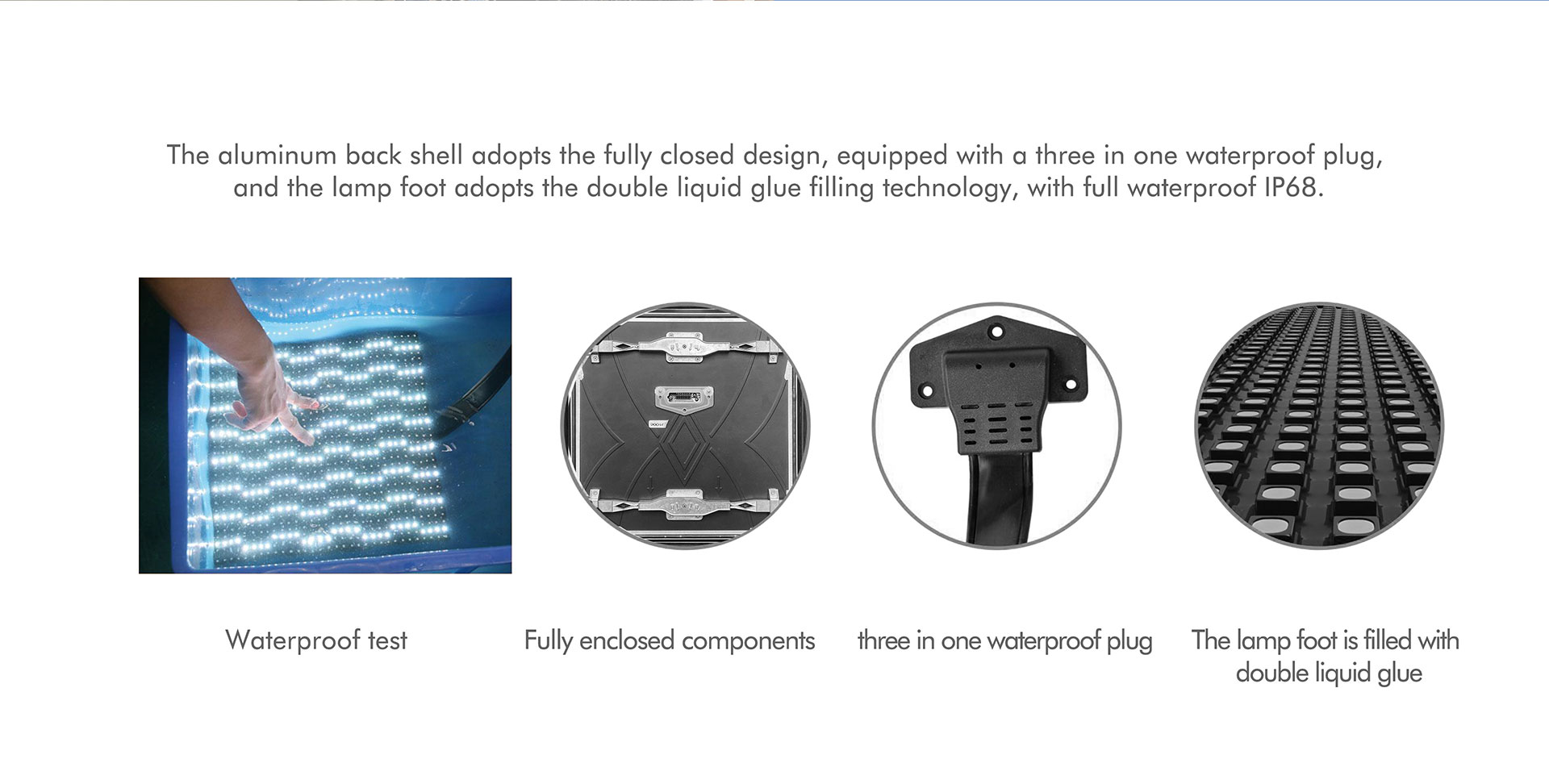

● Special waterproof design : IP67
● Perfect screen flatness

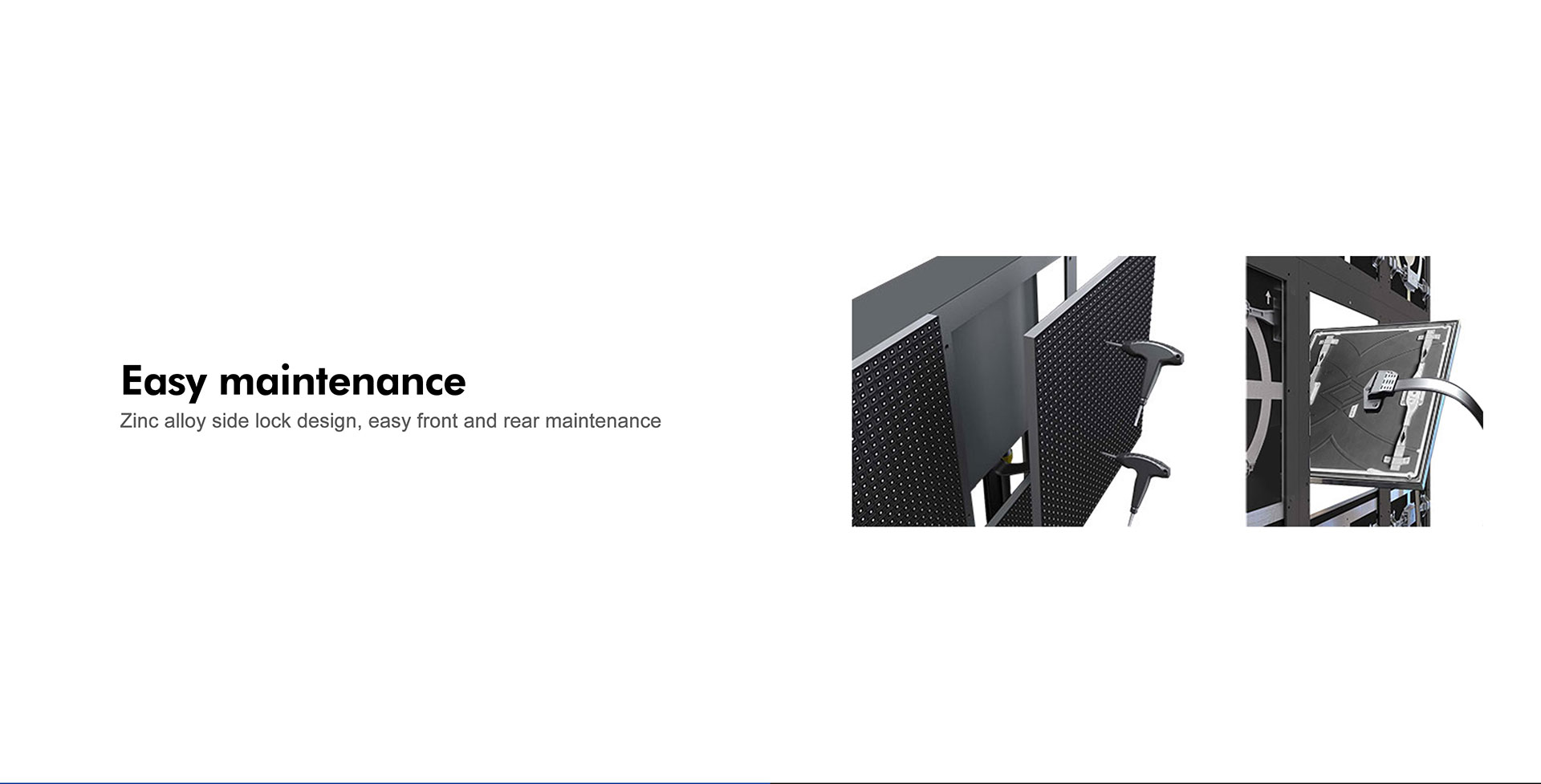

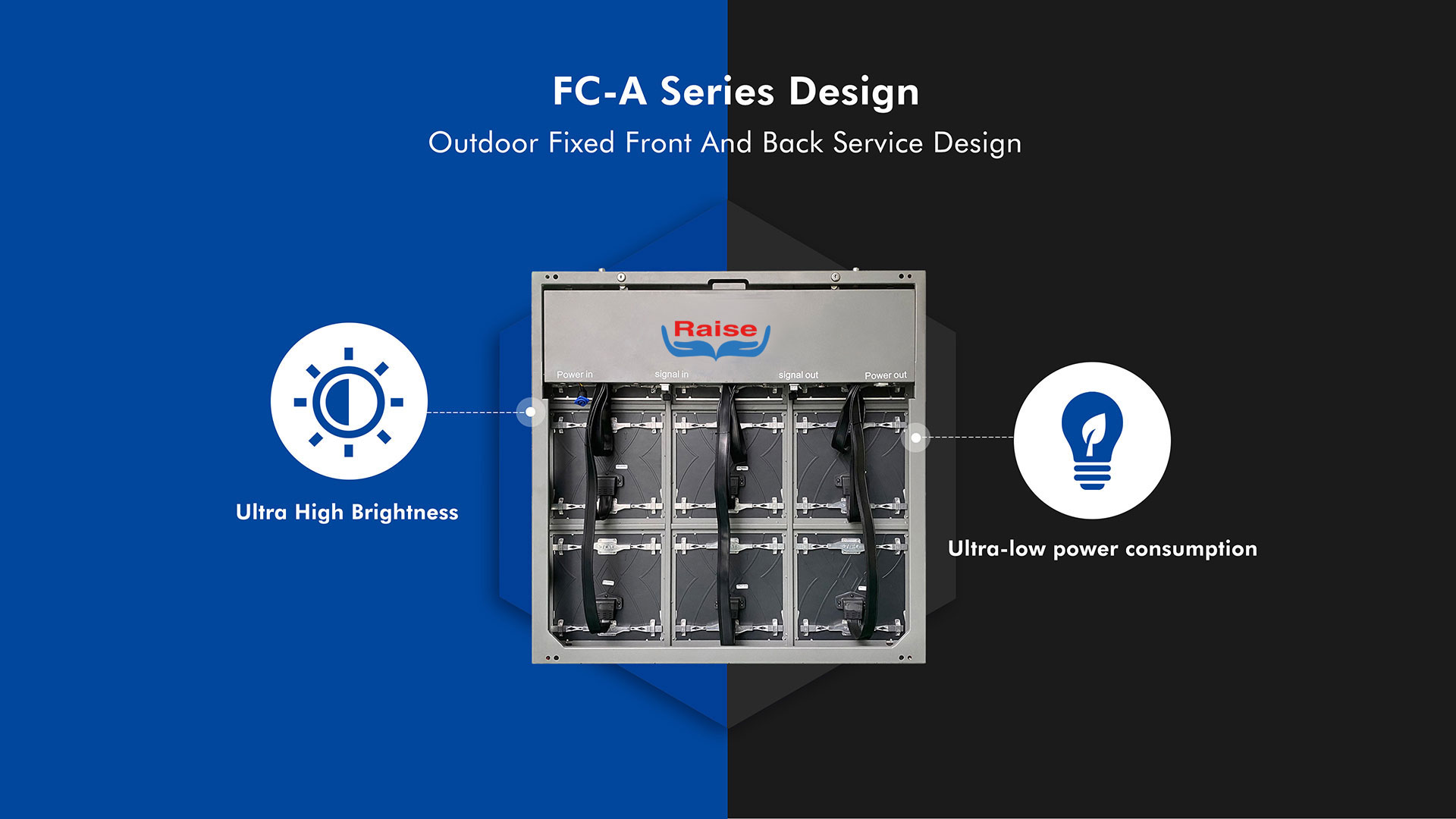

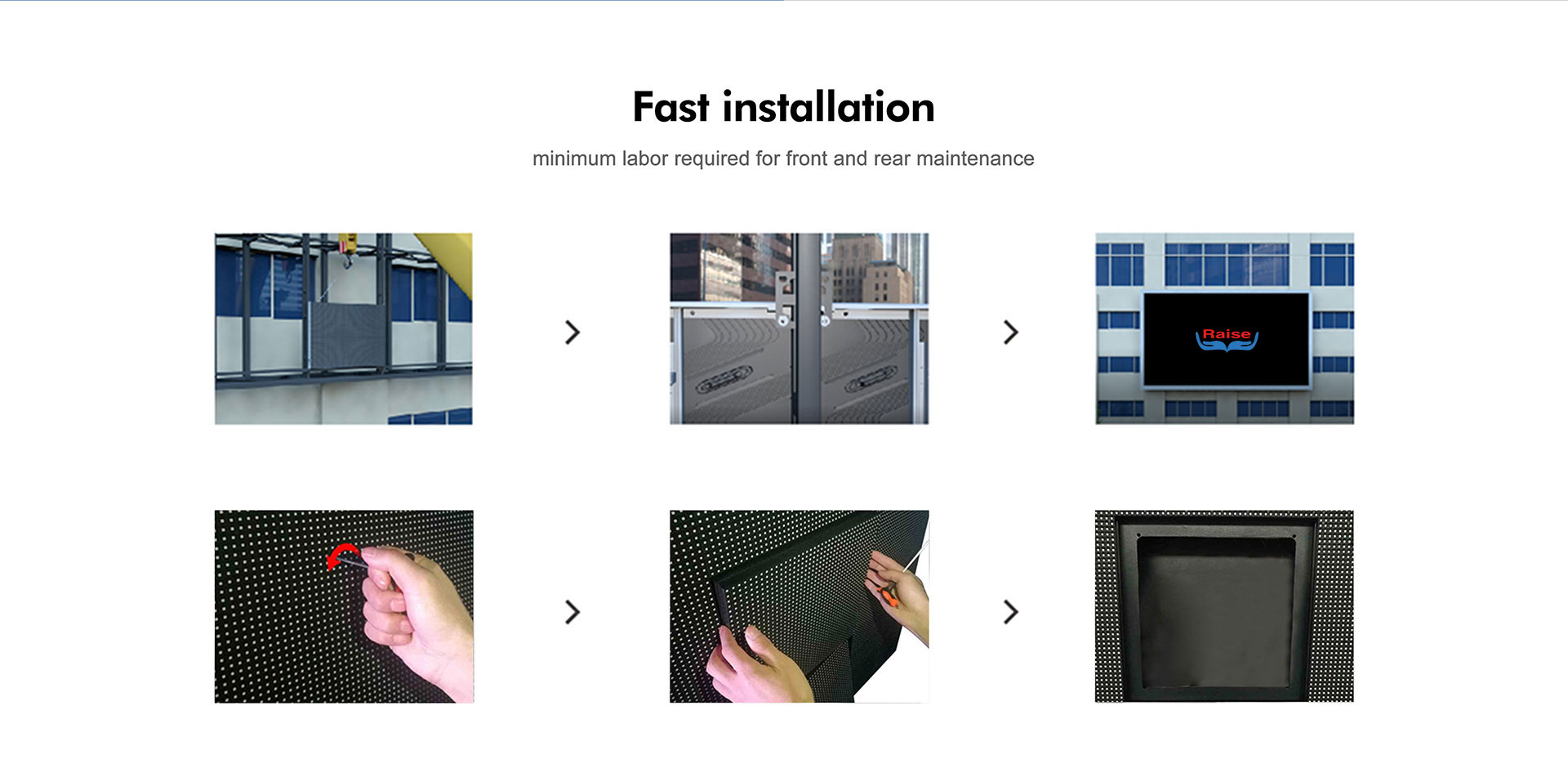

● Support front and back service
● 320mm*320mm size modules

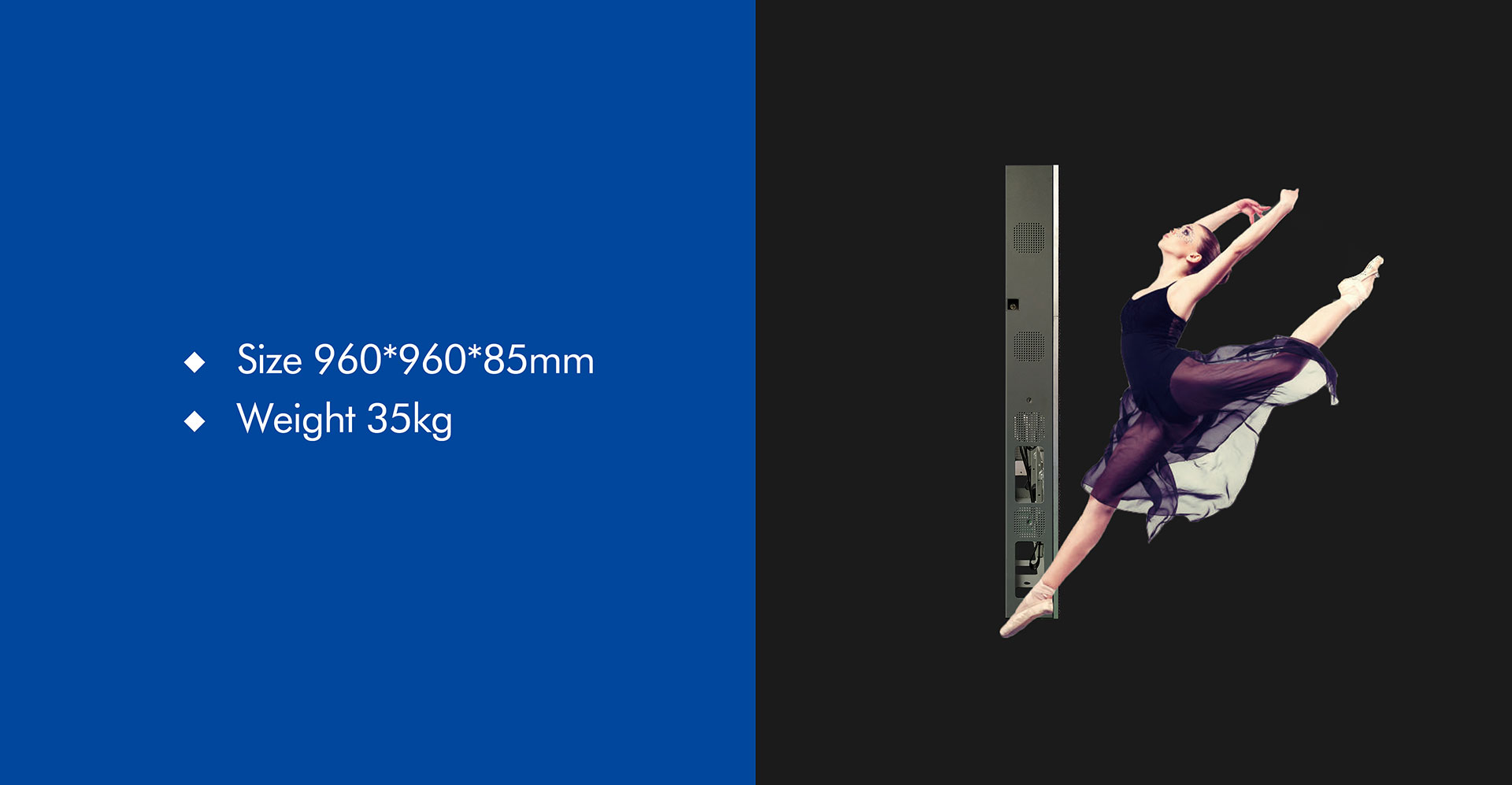

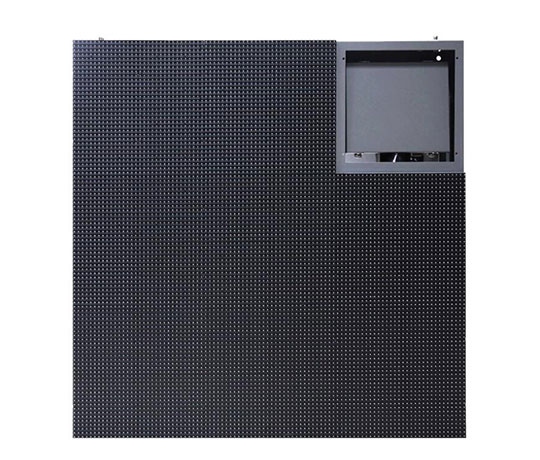

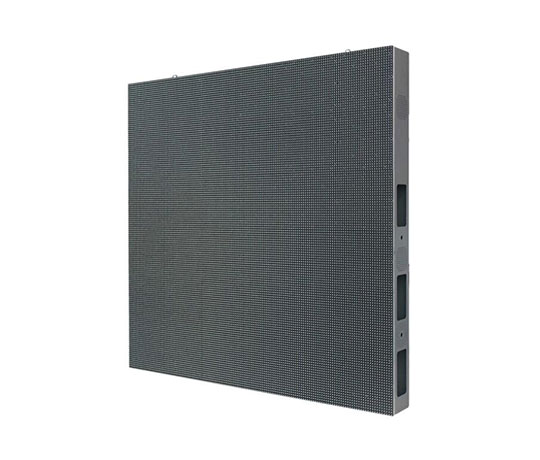

● 960*960mm size cabinet
● UL certification cables for high level market
Technical Parameters
R-A Series
|
|
Outdoor |
||||
|
Pixel Pitch |
3.7 |
5.2 |
6.5 |
7.8 |
9.5 |
|
LED lamp |
SMD3535 |
SMD3535 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Density |
72972dots/m2 |
36980dots/m2 |
23661dots/m2 |
15625dots/m2 |
10000dots/m2 |
|
Brightness |
5500-6000nits |
5500-6000nits |
5500-6000nits |
5500-6000nits |
6000-6500nits |
|
IP rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Cabinet Materiel |
Sheet Metal |
||||
|
Scan |
14scan |
9scan |
6scan |
5scan |
2scan |
|
Module weight |
1kg |
1kg |
1kg |
1kg |
1kg |
|
Cabinet Weight |
35kg |
35kg |
35kg |
35kg |
35kg |
|
Module size |
320*320mm |
320*320mm |
320*320mm |
320*320mm |
320*320mm |
|
Cabinet size |
960*960mm |
960*960mm |
960*960mm |
960*960mm |
960*960mm |
|
Module pixel |
86*86dots |
61*61dots |
49*49dots |
40*40dots |
32*32dots |
|
Cabinet pixel |
259*259dots |
184*184dots |
147*147dots |
120*120dots |
96*96dots |
|
Max Power |
570w/sqm |
570w/sqm |
570w/sqm |
570w/sqm |
570w/sqm |
|
Average Power |
150w/sqm |
150w/sqm |
150w/sqm |
150w/sqm |
150w/sqm |
|
Viewing Angle |
Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg |
||||
|
Control way |
synchronous/asynchronous |
||||
|
Brightness control |
256 level |
||||
|
Operating system |
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
||||
|
Work humidity |
10% ~ 90% |
||||
|
Work temperature |
﹣20 ~﹢50℃ |
||||
