FC-B Series
Product advantages:

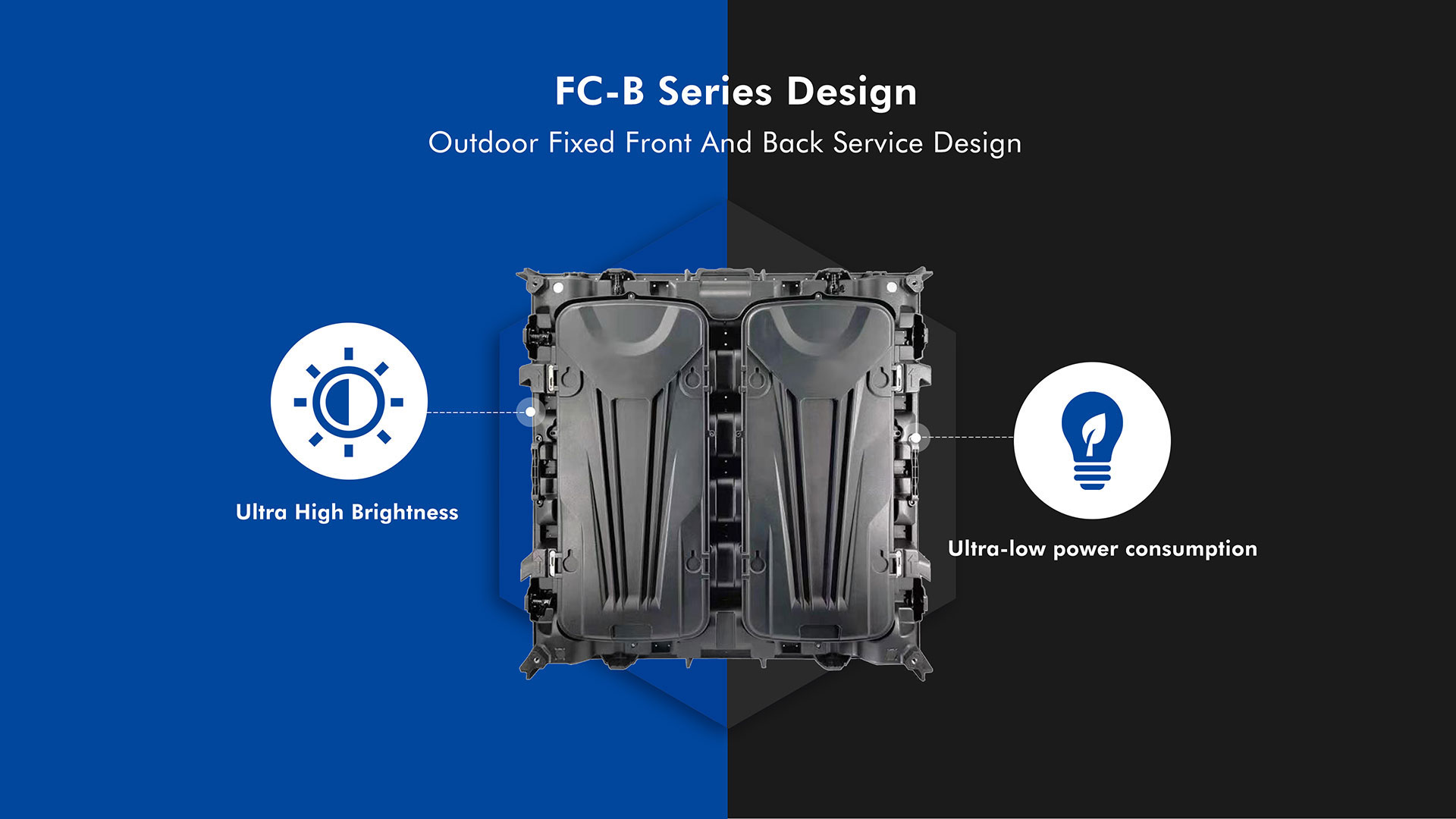

FC-B series,outdoor fixed front and back Service Design. this design is very usefull for outdoor projects, nomal produce we use Iron cabinet, it could make curve and 90° design also, and this Enbon series product also could update with diecasting aluminum cabinet, for some special cases, it is cost and function both good options.
● Easy maintaince and service
● Special waterproof design : IP67
● Perfect screen flatness
● Support front and back service

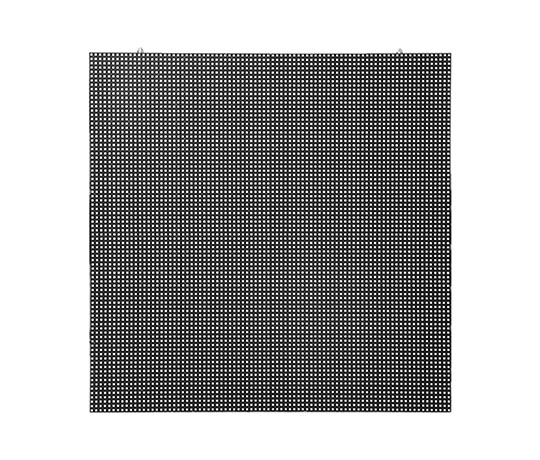

● 320mm*320mm size module

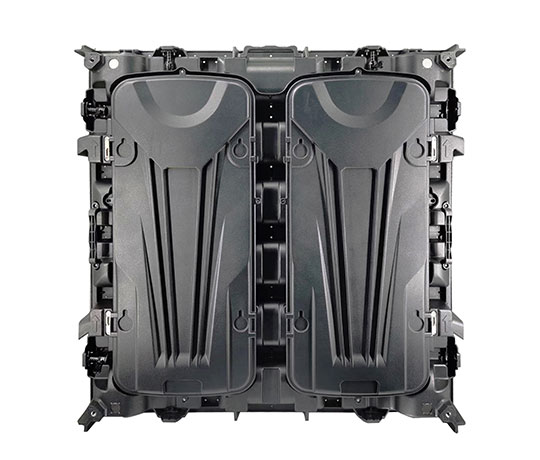

● 960mm*960mm size cabinet
● Different modules use same cabinet
Technical Parameters
FC-B Series
| Outdoor | |||||
| Pixel Pitch | P4 | P5.33 | P6.67 | P8 | P10 |
| LED lamp | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Density | 62500dots/m2 | 35344dots/m2 | 22500dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6500nits |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
| Scan | 1/10scan | 1/8scan | 1/5scan | 1/4scan | 1/2scan |
| Module weight | 1.6kg | 1.6kg | 1.6kg | 1.6kg | 1.6kg |
| Cabinet Weight | 28kg | 28kg | 28kg | 28kg | 28kg |
| Module size | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
| Cabinet size | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm |
| Module pixel | 80*80dots | 60*60dots | 48*48dots | 40*40dots | 32*32dots |
| Cabinet pixel | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
| Max Power | 850w/sqm | 800w/sqm | 850w/sqm | 800w/sqm | 700w/sqm |
| Average Power | 300w/sqm | 380w/sqm | 300w/sqm | 380w/sqm | 240w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
| Control way | synchronous/asynchronous | ||||
| Brightness control | 256 level | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10% ~ 90% | ||||
| Work temperature | ﹣20 ~﹢65℃ | ||||
